Electronic pressure switch with display
Model PSD-30, standard version
Model PSD-31, with flush diaphragm

Electronic pressure switch model PSD-30

    Applications
     Machine tools
     Hydraulics and pneumatics
     Pumps and compressors
     Machine building

   Special features
     Easily-readable, robust display
     Intuitive and fast setup
     Easy and flexible mounting configurations

   Description
    Award-winning in design and functionality The successful design and the excellent functionality of the WIKA switch family were already confirmed by winning the "iF product design award 2009" for the PSD-30 pressure switch.
    The robust LED display has been designed using 9 mm high characters (the largest possible) and with a slight incline in order to make reading the pressure as easy as possible from a long way off. A 14-segment display has been used, since it represents text very well.
    The 3-key operation makes simple, intuitive menu navigation possible, with no need for additional assistance. The menu navigation conforms to the latest VDMA standard.
    A new VDMA standard for fluid sensors (24574-1, part 1
    - pressure switches) has the aim of simplifying the use of pressure switches by standardising menu navigation and display.
    The control keys have been designed as large as possible and are arranged ergonomically to ensure fast and easy adjustments. Operation without any additional assistance is made easier through the tactile feedback.

   Customised installation
    The installation of the PSD-30 and PSD-31 can be flexibly adapted to the individual mounting situation. Due to the almost unlimited rotation of the display and case by more than 300°, the display can be adjusted independently of the electrical connection. The display can thus always be aligned to face the operator, and the M12 x 1 connection positioned to suit the desired cable routing.

   High quality
    During development of the WIKA switch family a high value was placed on a robust design and the selection of appropriate materials suited to machine building applications. For this reason the case and the threaded connection of the electrical connector are made from stainless steel. Overwinding or tearing off the connector is therefore virtually impossible.

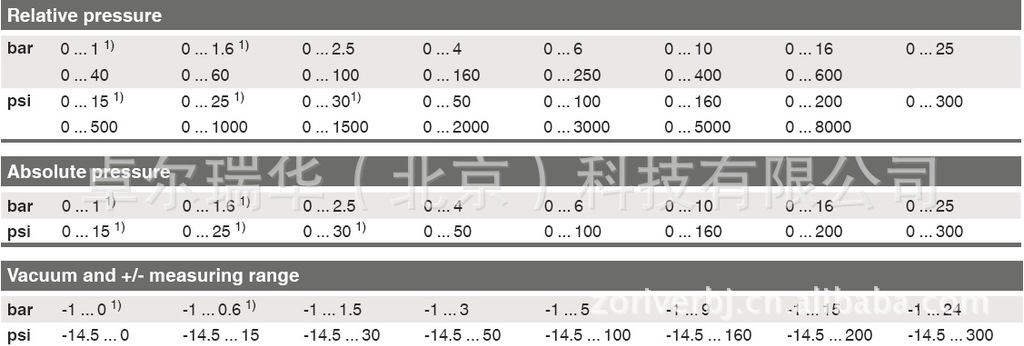

   Measuring ranges


    1) Not available for PSD-31.

   Overpressure limit
    2 times

   Display
    14-segment LED, red, 4-digit, 9 mm character size
    Display can be turned electronically through 180°
    Update (adjustable): 100, 200, 500, 1000 ms

   Output signals


    Alternatively also available with an NPN instead of a PNP switching output.
    With the IO-Link option, switching output 1 is always PNP.

   Zero offset adjustment
    maximum 3 % of span

   Analogue signal
    Current output load: ≤ 500 Ω
    Voltage output load: > 10 kΩ
    Settling time: 3 ms

   Switching output
    Switch point 1 and 2 are individually adjustable
    Normally-open and normally-closed function: freely adjustable
    Window and hysteresis function: freely adjustable

   Switching current
     without IO-Link: maximum 250 mA
     with IO-Link: maximum 100 mA
     Switching voltage: Power supply - 1 V
    Settling time: ≤ 10 ms

    Voltage supply

   Power supply
   DC 15 ... 35 V
   The power supply for the pressure transmitter must be made via an energy-limited electrical crcuit in accordance with section 9.3 of UL/EN/IEC 61010-1, or an LPS to UL/EN/IEC 60950-1, or class 2 in accordance with UL1310/UL1585 (NEC or CEC). The power supply must be suitable for operation above 2,000 m should the pressure transmitter be used at this altitude.

   Current consumption
    maximum 100 mA

   Total current consumption
     without IO-Link: max. 600 mA including switching current
     with IO-Link: max. 500 mA including switching current

   Accuracy

   Analogue signal
    ≤ ± 1.0 % of span
   Including non-linearity, hysteresis, zero-point and full scale deviations (corresponds to measured error per IEC 61298-2). Calibrated in vertical mounting position with process connection facing downwards.

    Non-linearity: ≤ ± 0.5 % of span (BFSL, IEC 61298-2)
    Long-term drift: ≤ ± 0.2 % of span (IEC 61298-2)

    Switching output
    ≤ ± 0.5 % of span

   Display
    ≤ ± 1.0 % of span ± 1 digit

   Temperature error in rated temperature range
     typical: ≤ ± 1.0 % of span

     maximum: ≤ ± 2.5 % of span

   Temperature coefficients in rated temperature range
    Mean TC zero point: ≤ ± 0,2 % of span / 10 K (typical)
    Mean TC span: ≤ ± 0,1 % of span / 10 K (typical)

    Temperature coefficients in rated temperature range
    Mean TC zero point: ≤ ± 0,2 % of span / 10 K (typical)
    Mean TC span: ≤ ± 0,1 % of span / 10 K (typical)

   Reference conditions

    Temperature:           15 ... 25 °C
    Atmospheric pressure:  950 ... 1050 mbar
    Humidity:              45 ... 75 % relative
    Nominal position:      Process connection lower mount
    Power supply:          DC 24 V
    Load:                  see output signals

   Operating conditions
    Temperatures and humidity
    Medium temperature:      -20 ... +85 °C
    Ambient temperature:     -20 ... +80 °C
    Storage temperature:     -20 ... +80 °C
    Rated temperature range: 0 ... 80 °C
    Permissible humidity:    45 ... 75 % relative

   Mechanics
    Mounting position:        as required
    Vibration resistance:     10 g (IEC 60068-2-27, under resonance)
    Shock resistance:         50 g (IEC 60068-2-6, mechanical)
    Service life:             10 million load cycles

   Ingress protection
    IP 65 and IP 67
   The stated ingress protection (per IEC 60529) only applies when plugged in using mating connectors that have the appropriate ingress protection.

   Electrical connections

   Connections
     Circular connector M 12 x 1, 4-pin
     Circular connector M12 x 1, 5-pin 1)
   1) Only for version with two switching outputs and analogue signal

   Electrical safety
    Short-circuit resistance:      S+ / SP1 / SP2 vs. U

    Reverse polarity protection:   U+ vs. U

    Insulation voltage:            DC 500 V
    Overvoltage protection:        DC 40 V

    Connection diagram

   Process connections

   Model PSD-30

   Standard Thread
    DIN 3852-E              G 1/4 A
                            G 1/2 A
    EN 837                  G 1/4 B
                            G 1/4 female
                            G 1/2 B
    ANSI / ASME B1.20.1     1/4 NPT
                            1/2 NPT
    ISO 7                   R 1/4
    KS                      PT 1/4
                            - G 1/4 female (Ermeto compatible)
   Other connections on request.

   Model PSD-31
    Standard           Thread
    -                  G 1/2 B with flush diaphragm

   Sealings
                     DIN 3852-E
    Standard         without
    Option           NBR, FPM / FKM

   Materials

   Wetted parts
    Process connection: Stainless steel 316L

   Pressure sensor
     ≤ 10 bar: Stainless steel 316L
     > 10 bar: Stainless steel 13-8 PH

   Non-wetted parts
    Case:            Stainless steel 304
    Keyboard         TPE-E
    Display window:  PC
    Display head:    PC+ABS-Blend

   Approvals, directives and certificates

   Approvals
    Standard        without
    Option          cULus

   CE conformity
     Pressure equipment directive 97/23/EC
     EMC directive 2004/108/EC, EN 61326 emission (group 1, class B) and immunity (industrial application)

   RoHS conformity
    Yes

   Dimensions in mm
    Pressure switch



   Process connections model PSD-30



    Process connections model PSD-30 Process connection model PSD-31
